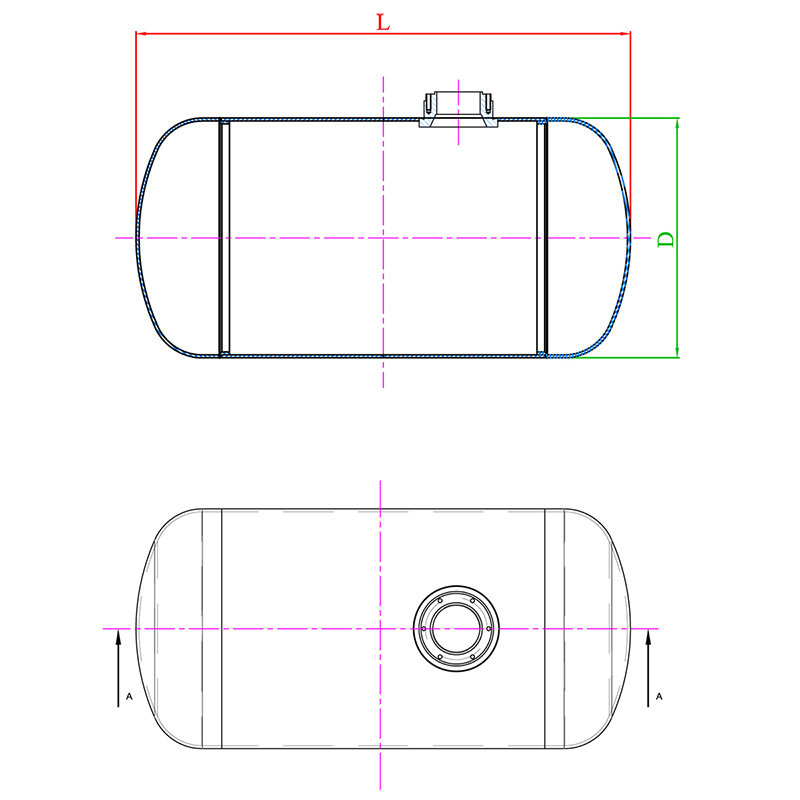

SERBATOIO CILINDRICO (SC01)
|
|
Pressione di progetto: 30 bar
Pressione di esercizio: 20 bar
Approvazione: ECE 67.01
Regolazione temperatura di lavoro: -20 + 65 °C
|
| Codice Articolo | Diametro | Altezza | Litri | Peso | Omologazione E20 | Omologazione E7 |
| SC01.200010 | 200 | 390 | 10 | 7 | E20 67R-010958 | E7 67R-01037662 |
| SC01.200015 | 200 | 560 | 15 | 10 | E20 67R-010958 | E7 67R-01037662 |
| SC01.200020 | 200 | 730 | 20 | 12 | E20 67R-010958 | E7 67R-01037662 |
| SC01.200025 | 200 | 900 | 25 | 15 | E20 67R-010958 | E7 67R-01037662 |
| SC01.200029 | 200 | 1030 | 29 | 17 | E20 67R-010958 | E7 67R-01037662 |
| SC01.200030 | 200 | 1060 | 30 | 20 | E20 67R-010958 | E7 67R-01037662 |
| SC01.244022 | 244 | 503 | 22 | 11 | E20 67R-010870 | E7 67R-01612505 |
| SC01.244027 | 244 | 615 | 27 | 13 | E20 67R-010870 | E7 67R-01612505 |
| SC01.244031 | 244 | 727 | 31 | 15 | E20 67R-010870 | E7 67R-01612505 |
| SC01.244037 | 244 | 840 | 37 | 17 | E20 67R-010870 | E7 67R-01612505 |
| SC01.244041 | 244 | 950 | 41 | 19 | E20 67R-010870 | E7 67R-01612505 |
| SC01.270026 | 270 | 524 | 26 | 13 | E20 67R-010871 | E7 67R-01612506 |
| SC01.270031 | 270 | 615 | 31 | 16 | E20 67R-010871 | E7 67R-01612506 |
| SC01.270036 | 270 | 705 | 36 | 17 | E20 67R-010871 | E7 67R-01612506 |
| SC01.270041 | 270 | 797 | 41 | 18 | E20 67R-010871 | E7 67R-01612506 |
| SC01.270047 | 270 | 886 | 47 | 20 | E20 67R-010871 | E7 67R-01612506 |
| SC01.270052 | 270 | 977 | 52 | 22 | E20 67R-010871 | E7 67R-01612506 |
| SC01.270057 | 270 | 1069 | 57 | 24 | E20 67R-010871 | E7 67R-01612506 |
| SC01.300030 | 300 | 500 | 30 | 13 | E20 67R-010872 | E7 67R-01612507 |
| SC01.300041 | 300 | 648 | 41 | 18 | E20 67R-010872 | E7 67R-01612507 |
| SC01.300046 | 300 | 708 | 46 | 20 | E20 67R-010872 | E7 67R-01612507 |
| SC01.300052 | 300 | 768 | 52 | 23 | E20 67R-010872 | E7 67R-01612507 |
| SC01.300055 | 300 | 850 | 55 | 25 | E20 67R-010872 | E7 67R-01612507 |
| SC01.300064 | 300 | 960 | 64 | 26 | E20 67R-010872 | E7 67R-01612507 |
| SC01.300072 | 300 | 1088 | 72 | 28 | E20 67R-010872 | E7 67R-01612507 |
| SC01.315032 | 315 | 460 | 32 | 14 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315035 | 315 | 498 | 35 | 15 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315041 | 315 | 578 | 40 | 16 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315046 | 315 | 623 | 46 | 19 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315050 | 315 | 690 | 50 | 19 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315055 | 315 | 753 | 55 | 21 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315061 | 315 | 820 | 61 | 22 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315069 | 315 | 924 | 69 | 25 | E20 67R-010873 | E7 67R-011031802 |
| SC01.315080 | 315 | 1126 | 80 | 28 | E20 67R-010873 | E7 67R-011031802 |
| SC01.360050 | 360 | 554 | 50 | 19 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360064 | 360 | 662 | 64 | 22 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360070 | 360 | 758 | 70 | 24 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360080 | 360 | 875 | 80 | 29 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360090 | 360 | 960 | 90 | 33 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360101 | 360 | 1060 | 101 | 37 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360112 | 360 | 1160 | 112 | 40 | E20 67R-010874 | E7 67R-01612508 |
| SC01.360122 | 360 | 1260 | 122 | 43 | E20 67R-010874 | E7 67R-01612508 |
| SC01.400092 | 400 | 803 | 92 | 35 | E20 67R-010875 | E7 67R-01037663 |
| SC01.400103 | 400 | 886 | 103 | 38 | E20 67R-010875 | E7 67R-01037663 |
| SC01.400113 | 400 | 966 | 113 | 41 | E20 67R-010875 | E7 67R-01037663 |
| SC01.400121 | 400 | 1049 | 121 | 44 | E20 67R-010875 | E7 67R-01037663 |
| SC01.400132 | 400 | 1130 | 132 | 47 | E20 67R-010875 | E7 67R-01037663 |
| SC01.400142 | 400 | 1213 | 142 | 50 | E20 67R-010875 | E7 67R-01037663 |
